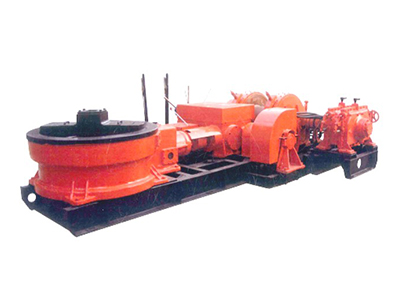

該系列鉆機為機械傳動，轉盤回轉，重心低、 傳動平穩，堅固耐用、操作安全、密封性能好， 鉆機布局合理、便于維修保養。該鉆機可采用油缸液壓搓扣，也可采用石油鉆探擰卸鉆具的工藝， 用錨頭輪裝置擰卸鉆具。
主要用于水源、中淺層石油、天然氣、煤層氣、 地?zé)岬茹@探。也可用于地質、礦井建設等其他工程鉆孔。
TSJ series Drilling Rigs are mechanical transmission, turnplate rotation Drilling Rig. characterized by low center of gracity, smooth transmission of motion, reliable operation and perfect sealing.the structure of the drill is reasonable arranged and compact.and easy to maintain and repair etc, it adopts hydraulic oil cylinder to mechanical screw out drilling pipes,this will sace labout and ensure good drilling holes.it can also adopt other way to mechanical screw out drilling pipes, such as the technique used in petroleum xuplorating, that is to use the cat head.
It is mainly used for drilling underground water resource,shallow petroleum.natural gas. coal gas and geothermal.also for geological drilling.well drilling and other engineering drilling.
主要技術參數 Technical Specifications
| 鉆孔深度Drillmg Depth |
φ89鉆桿 φ114鉆桿
φ89 Drill pipe φl(shuí)14Dril PIPE
2000 1500
|
|
轉盤通徑
Opening Diameter of Rotary Table
|
φ660 |
| 轉盤轉速(正反)(r/min) RPMol Turnplate(CW CCW) | 37 52 84 145 |
| 轉盤輜出最大扭矩(kN.m) Max. NorminaJ torque out of | 21 |
| 轉盤最大搓扣扭矩(kN.m) Max. Thread Tightening Torqueof | 86 |
| 鋼絲繩直徑(巾mm) Wire Diameter | 24.5 |
| 卷?yè)P(yáng)機單繩最大提升力(kN) Hoistng Capacity of Windlass | 90 |
| 卷?yè)P(yáng)機提升速度(按二層計算)(rWs) Lrft Speed of the Winch | 0.34 1.90 3.3 |
| 離合參輸入轉速(「min) Input Speed of Clutching | 730 |
|
柴油機型號
DigsgI Engine Model
|
6135AN-3-SM |
| 功率(KW)Poww | 110 |
| 轉速(r/min)Rotary Speed | 1500 |
| 電動機型號Etectromc Power Model | Y315S-4 |
| 功率 <KW)Power | 110 |
| 轉速(r/min)Rotary Speed | 1480 |
| 游動系 St Travelling System | 4xS |
| 外形尺寸(LxWxH)(mm)Overall Dimensions | 3880x1965x1290 |
| 主機匝量(不含動力)(Kg)Ne< Weight | 7820 |
